Base Cap 2-11/16"
Base Cap 2-11/16"

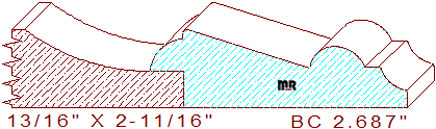

This rabbeted base cap 2-11/16" measures 2.687" wide by .812" thickness, allowing the detail to get milled out of four-quarter lumber. The embellishing profile is composed of a 3/8" convex semicircular arc on the top left, joined to a 1/16" radius edge and a 17.471 down-sloping angled line in the center, merged with a two tangent radius thumbnail shaped arc. An 11/64" broad line segment joins an 11/32" cove with a 3/64" eased edge on the right side of the design. The rabbet dimension for the baseboard is 1/4" wide by 3/8" tall. We offer another similar profile in the same size but with different inner dimensions for your review and consideration, base cap 2.687" - 1.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.687
Depth of Cut: 0.640
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$235.47
Not Needed
Total:
$235.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$249.22
Not Needed
Total:
$249.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$269.84
Not Needed
Total:
$269.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
