Base Cap 2-15/16"
Base Cap 2-15/16"

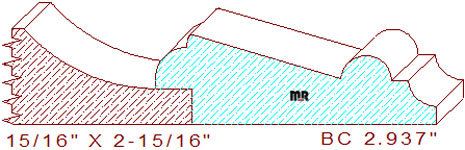

This elegant base cap 2-15/16" measures 2.937" width by .937" thickness, requiring a 3-3/16" wide blank of five-quarter lumber for milling on a commercial molder. The attractive profile comprises a 5/16" quarter circle with a 1/8" vertical fillet on the top left. The short line transitions downward to 16.331 degrees in the center. The lower section of the angle attaches to a 17/32" wide half-circle merged with an 11/64" wide fillet and a 19/64" cove on the pattern's right side. The backside rabbet dimension is 3/8" wide by 3/8" tall; it is included in the downloadable DXF file available below.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 2.938
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$249.53
Not Needed
Total:
$416.03
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$264.28
Not Needed
Total:
$440.28
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$286.41
Not Needed
Total:
$476.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
