Base Cap 3" - 8
Base Cap 3" - 8

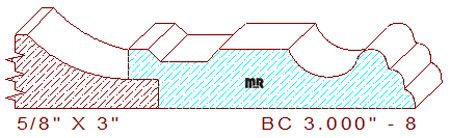

This base cap 3" - 8 measures 3.000" wide by .625" thick. The profile comprises two raised fillets connected to a hollow line segment with chamfered edges. Joined to a scotia that transitions into a half-round bead and two cascading quarter-round dots, the backside rabbet dimension is 5/16" wide by 5/16" tall for the top of the baseboard.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.312
Top Cutter Head
Width: 3.000
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$238.00
Not Needed
Total:
$404.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$253.00
Not Needed
Total:
$429.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$275.50
Not Needed
Total:
$465.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
