Base Cap 3-1/8" - 1
Base Cap 3-1/8" - 1

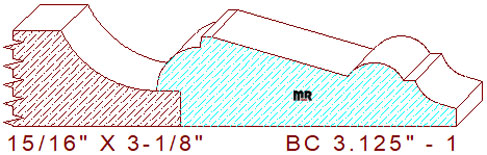

This base cap measures 3-1/8" wide by 15/16" thick. The profile comprises a quarter-round bead, fillet, sloped angle, half-round bead, and a cove on top. This pattern is best combined with a baseboard with a cong'e design so that the top section can fit under the rabbet of this base cap.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.250
Top Cutter Head
Width: 3.125
Depth of Cut: 0.769
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$260.00
Not Needed
Total:
$426.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$275.50
Not Needed
Total:
$451.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$298.75
Not Needed
Total:
$489.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
