Base Cap 3-3/16"
Base Cap 3-3/16"

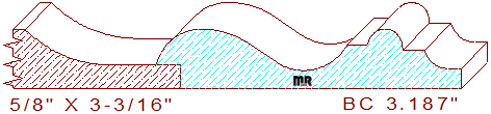

This colonial base cap 3-3/16" measures 3.187" width by .625" thickness, requiring the use of a 3-7/16" wide blank of four-quarter lumber for milling on an industrial molder. The astonishing profile comprises a graceful two-tangent radius s-shaped curvature on the top center. The wavy lines connect to a towering half-circle flanked by short fillets with a 1/4" cove on the design's right side. The backside rabbet dimension is 1/4" wide by 1/4" tall. We offer the matching baseboard to this detail for your review and consideration, baseboard 5.000" - 22.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.250
Top Cutter Head
Width: 3.188
Depth of Cut: 0.490
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$247.78
Not Needed
Total:
$414.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$263.53
Not Needed
Total:
$439.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$287.16
Not Needed
Total:
$477.41
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
