Base Cap 3-1/2"
Base Cap 3-1/2"

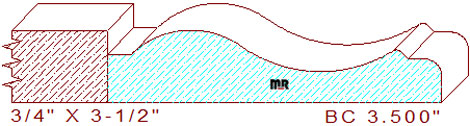

This lavish base cap 3-1/2" measures 3.500" wide by .750" thickness, requiring the use of four-quarter lumber for milling on an industrial-grade molder. The sumptuous profile contains a 1/4" full-line segment at a 1/2" thickness dimension on the top left; this will create a quirk when applied to a piece of surfaced four sides lumber (S4S). The line connects to a beautiful two tangent radius s-shaped curvature with a 1/16" point joined to a tiny beveled line in the center, bound to a small 23/64" broad flat fillet with a 3/16" rolled edge, leaving a 29/64" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.641
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
Not Needed
Total:
$281.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
Not Needed
Total:
$298.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.50
Not Needed
Total:
$323.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
