Base Cap 3-1/2" - 2
Base Cap 3-1/2" - 2

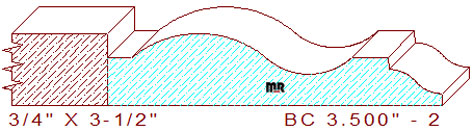

This ornate base cap 3-1/2" - 2, measures 3.500" wide by .750" thickness, authorizing the use of four-quarter lumber for milling on a commercial-grade molder. The opulent profile contains a 1/4" horizontal fillet at a 1/2" thickness dimension on the top left; this will create a quirk when applied to a piece of surfaced four sides lumber (S4S). The short line connects to a free-flowing two tangent radius s-shaped curvature in the center, merged to a small 3/8" wide by 1/8" tall raised fillet and two 3/8" tangent radii forming the ogee, leaving a 1/8" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
Not Needed
Total:
$264.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
Not Needed
Total:
$281.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
Not Needed
Total:
$306.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
