Baseboard 2-3/4" - 2

Baseboard 2-3/4" - 2

Baseboard 2-3/4" - 2

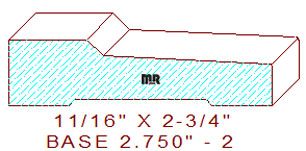

This beveled baseboard/casing 2-3/4" - 2 measures 2.750" wide by .687" thickness. The profile contains a 13/16" broad fillet with a transitioning forty-five-degree angle that connects to a slightly tapered fillet with a 3/64" eased edge leaving a final thickness of 7/16" on the right side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.750
Depth of Cut: 0.444
Bottom Cutter Head
Width: 2.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$218.00
$218.00
Total:
$436.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$232.00
$232.00
Total:
$464.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$246.00
$246.00
Total:
$492.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
