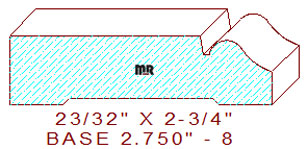

The professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this baseboard detail, one is deigned to mill the entire width of the moulding and the other is laid out to cut just the detail portion of the pattern, this resource saving moulding template design favors moulder machinery with two top horizontal cutter head configuration.
For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.
Width = 2.750" / Depth of Cut = .409" (top knives) & .062" (bottom cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
