Base Moulding 2-7/8"

Base Moulding 2-7/8"

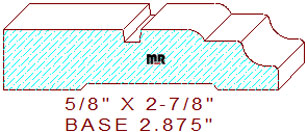

This beautifully small baseboard moulding 2-7/8" measures 2.875" wide by .625" thickness, allowing the detail to be machined from four quarter lumber. The modern profile is composed of a 1-1/4" wide straight line on the left, connected to a 3/16" wide by 1/8" deep dado and a 43/64" wide line with a 3/16" rounded edge in the middle, joined to a 3/8" wide lines segment and a 1/4" cove with a 3/64" eased edge on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Ever wonder why certain species of lumber have tear out problems during the milling process? Find out more on how to reduce and eliminate tear issues by changing the cutter head hook angle on the knives. Purchasing 12/20 duel angle cutter heads will save a substantial amount of money when investing in this style of moulder tooling.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.875" / Depth of Cut = .594" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
