Baseboard 2-7/8" - 1
Baseboard 2-7/8" - 1

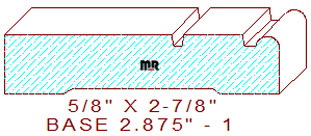

This petite baseboard 2-7/8" - 1 measure 2.875" wide by .625" thickness, allowing the detail to be milled from four-quarter lumber. The stylish profile is composed of a 1-3/4" broad straight line on the left, connected to a 1/8" wide by 1/8" deep dado that joins to a 41/64" broad line segment in the middle, attached to a 1/8" wide sunk fillet that merges with a 1/4" wide recessed (.020") half round bead on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.875
Depth of Cut: 0.281
Bottom Cutter Head
Width: 2.875
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$231.50
$231.50
Total:
$463.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$246.00
$246.00
Total:
$492.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.75
$267.75
Total:
$535.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
