Base Moulding 3" - 1

Base Moulding 3" - 1

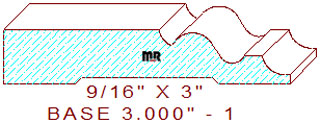

This custom base moulding 3" - 1 measures 3.000" wide by .562" thickness, enabling the detail to be milled from four quarter lumber. The designer profile is composed of a 1-5/8" wide line segment on the left side, attached to a 7/32" cove that transitions into a two tangent radius cyma reversa, connected to a small 3/16" wide raised fillet with a 1/4" cove, leaving a 3/32" thickness dimension on the right side of the pattern. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras, there are literally thousands of compelling designs to help match your creative style.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .469" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
