Baseboard 3" - 2
Baseboard 3" - 2

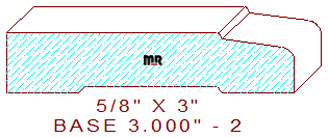

This beveled edge baseboard 3" - 2 measures 3.000" width by .625" thickness requiring a 3-1/4" wide blank of four-quarter lumber for milling on commercial machinery. The basic profile contains a 2-1/4" broad flat line segment with a 1/16" vertical step on the top center. The short line attaches to a 7.824-degree angled line with a 5/32" rolled edge on the design's right side.
Try one of our fancy base shoe moldings on the bottom portion of this pattern; find an irresistible, compelling design by simply changing the width search parameters to any desired size in the search boxes provided.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.459
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$238.00
$238.00
Total:
$476.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$253.00
$253.00
Total:
$506.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$275.50
$275.50
Total:
$551.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
