Baseboard 3-1/8" - 4

Baseboard 3-1/8" - 4

Baseboard 3-1/8" - 4

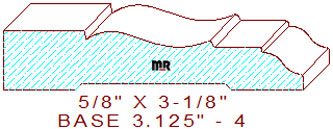

This designer baseboard 3-1/8" - 4 measures 3.125" wide by .625" thickness, permitting the detail to be machined out of four-quarter lumber. The beautiful custom profile is comprised of a 27/32" broad flat line with a 3/32" steep beveled inside edge on the top left, connected to a shallow s-shaped curvature with another angled section to alter the elevation in the center, joined to a 1/2" horizontal line segment with a slight vertical edge, attached to a 1/4" convex arc, tangent to a 1/4" concave semicircle creating the ogee with a 3/64" eased edge on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.125
Depth of Cut: 0.600
Bottom Cutter Head
Width: 3.125
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$236.75
$236.75
Total:
$473.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$252.25
$252.25
Total:
$504.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.75
$267.75
Total:
$535.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
