Baseboard 3-3/16"
Baseboard 3-3/16"

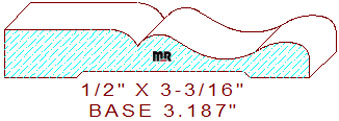

This small decorative baseboard 3-3/16" measures 3.187" width by .500" thickness requiring a 3-7/16" wide blank of resawn six-quarter lumber for milling on commercial machinery. The graceful profile comprises a 1-25/64" broad flat line with a 5/16" radius on the inner top left. The convex semicircle attaches three tangent radiuses creating a wave-like detail with an 11/64" round-over on the design's right side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.466
Bottom Cutter Head
Width: 3.188
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$247.72
$247.78
Total:
$495.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$263.53
Total:
$527.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$287.16
Total:
$574.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
