Base Moulding 3-3/16" - 2

Base Moulding 3-3/16" - 2

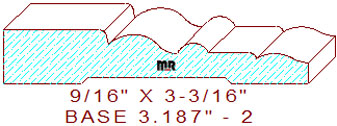

This distinctive baseboard moulding 3-3/16" - 2 measures 3.187" wide by .563" thickness, permitting the detail to be machined out of four, or resawn six quarter lumber. The fancy profile is composed of a 1-3/32" wide by 5/32" tall raised fillet with a 5/64" eased inner edge on the top left, attached to a short two tangent radius cyma reversa with a 21/64" wide convex semicircular arc in the center, joined to a 1/2" wide line segment with a 3/64" rounded edge that joins to a two tangent radius ogee on the right side of the design.

Mirror Reflections has over thirty-five years’ experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.187" / Depth of Cut = .472" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
