Base Moulding 3-3/16" - 5

Base Moulding 3-3/16" - 5

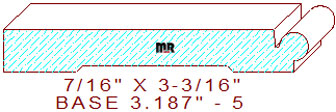

This pencil bead baseboard moulding 3-3/16" - 5 measures 3.187" wide by .437" thickness, enabling the pattern to be cut out of solid four, or resawn six quarter lumber. The simplistic decorative profile could also be utilized as a crown backer, it is composed of a 2-21/32" wide flat line segment with a 3/64" eased inner edge on the top center, joined to a 1/16" wide by 11/64" deep sunk fillet that merges with a 5/16" wide three quarter round pencil bead with a 7/64" tall vertical line segment on the right side of the design.

This professionally drafted template ready computer aided drafting (CAD) drawing exchange file (DXF) (purchase in the box below) contains two high precision template designs to create profile cutters for this creative baseboard pattern. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing your architectural decor with any of our attractive moulding designs.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.187" / Depth of Cut = .245" (top knives) & .062" (bottom cutters).

Thickness = .437" / Depth of Cut = .156" (right blades).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
