Baseboard 3-3/16" - 6
Baseboard 3-3/16" - 6

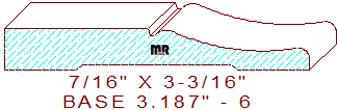

This small thin baseboard 3-3/16" - 6 measures 3.187" wide by .437" thickness, allowing the pattern to be machined out of resawn six or solid four-quarter lumber. The lovely profile is composed of a 1-1/2" broad flat line segment on the top left, connected to a 1/32" wide by 5/64" deep steep beveled edge joined to a 1/16" wide sunk fillet in the center, attached to a 5/32" convex arc, tangent to a 2-9/32" concave semicircle that merges with a 7/64" round-over on the right side of the design.
Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic, or plastic sacrificial bed plate be used for these milling operations.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.187
Depth of Cut: 0.437
Bottom Cutter Head
Width: 3.188
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$247.72
$247.78
Total:
$495.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.47
$263.53
Total:
$527.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$287.09
$287.16
Total:
$574.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
