Base Moulding 3-1/4" - 10

Base Moulding 3-1/4" - 10

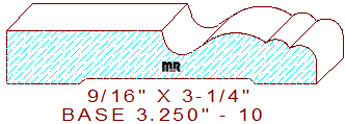

This custom baseboard moulding 3-1/4" - 10 measures 3.250" wide by .562" thickness, permitting the detail to be milled out of four quarter lumber. The beautifully creative profile is composed of a 1-5/8" wide flat line segment on the top left, attached to a 3/16" radius scotia that transitions into a 35/64" convex arc in the middle, connected to a 5/32" protuberant semicircle and a 9/32" wide half round bead on the right side of the design.

We provide the cut steel size on all our template & knife designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .468" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
