Base Moulding 3-1/4" - 12

Base Moulding 3-1/4" - 12

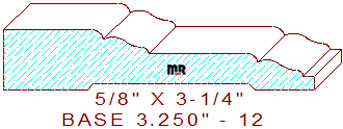

This voguish baseboard moulding 3-1/4" - 12 measures 3.250" wide by .625" thickness, permitting the detail to be machined out of four quarter lumber. The exclusive profile is composed of a 1-1/64" wide line segment with a 1/8" rounded inner edge on the top left, connected to a three tangent radius cyma reversa and a 1-9/64" wide horizontal line with a 1/8" rolled edge in the center, joined to another identical ogee with a 1/8" wide fillet leaving a 9/64" thickness dimension on the right side of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to match your needs.

Mirror Reflections offers thousands of inspirational and compelling architectural mouldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .485" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
