Baseboard 3-1/4" - 20
Baseboard 3-1/4" - 20

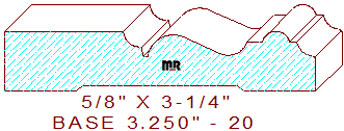

This traditional colonial baseboard 3-1/4" - 20 measures 3.250" wide by .625" thickness, allowing the detail to be milled from four-quarter lumber. The long-established profile is composed of a 1-1/4" broad horizontal line on the top left, attached to an 11/64" cove and a 1/16" wide by 3/32" deep sunk fillet, joined to a graceful S-shaped curvature in the center, connected to a 5/32" line segment and a 9/32" wide half round bead, bound to a 5/64" wide fillet and a 3/16" cove with a 3/64" eased edge on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.250
Depth of Cut: 0.453
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$251.00
$251.00
Total:
$502.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.00
$267.00
Total:
$534.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.00
$291.00
Total:
$582.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
