Baseboard 3-1/4" - 34

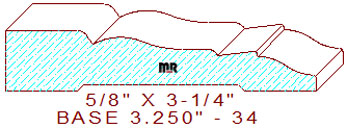

This delightful baseboard 3-1/4" - 34 measures 3.250" width by .625" thickness, enabling the use of a 3-1/2" wide blank of four-quarter lumber for milling on an industrial-grade molder. The custom profile contains a 59/64" wide flat line segment with a 1/8" rolled tapered edge on the top left. The angled line connects to a shallow three-tangent radius s-shaped curvature in the center with a short upsloping line and a graceful ogee with a 3/64" eased edge on the design's right side.

Need this profile template and a set of molding cutters quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; there are thousands of compelling designs to help match your creative style.

Caution: the cutters will come within .020" of the machine bed plates when milling this detail. For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).
