Baseboard 3-1/4" - 46

Baseboard 3-1/4" - 46

Baseboard 3-1/4" - 46

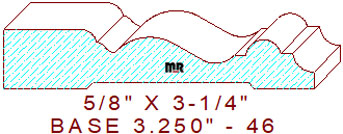

This attractive colonial baseboard/casing 3-1/4" - 46 measures 3.250" wide by .625" thickness, necessitating the use of four-quarter lumber for milling. The good-looking profile is composed of a 63/64" wide line segment with a 3/16" eased inner edge on the left side, attached to a small shallow ogee that joins to a large two tangent radius cyma reversa in the middle, connected to a 3/8" wide half round bead flanked by small fillets with a 7/32" cove, leaving an 11/64" thickness dimension on the right side of the pattern. This detail could also be utilized as a casing by increasing the thickness and milling the radius of choice on the left vertical cutter head on the molder. Explore our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a suitable design to suit your needs.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .448" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
