Baseboard 3-1/4" - 62

Baseboard 3-1/4" - 62

Baseboard 3-1/4" - 62

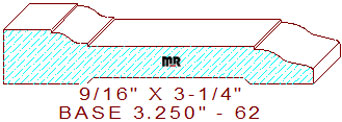

This delightful baseboard 3-1/4" - 62 measures 3.250" wide by .562" thickness, allowing the pattern to be machined out of resawn six or solid four-quarter lumber. The fashionable profile is composed of a 1/2" wide line segment with a 1/32" vertical step, connected to a two tangent radius ogee with another 1/32" drop in elevation that joins to a 1-3/4" wide flat line in the center, attached to an additional 1/32" step with a larger ogee and a 1/16' rounded edge, leaving a 5/32" thickness dimension on the right side of the design.

Architects, interior designers, contractors, lumber mills, cabinet shops, and manufacturers have been utilizing our vast variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.250" / Depth of Cut = .530" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
