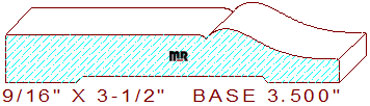

This small base moulding measures 3-1/2" wide by 9/16" thickness, the design consist of a cyma reversa portion that transitions in a radius edge fillet section which is 1/2" in thickness. The profile portion is oriented up against the fixed fence on the moulder enabling the operator to move the moulder pressure shoe laterally and seat on the flat portion of the design during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
