Baseboard 3-1/2" - 1
Baseboard 3-1/2" - 1

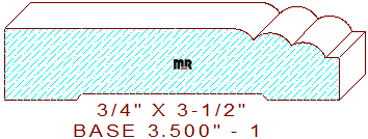

This beaded baseboard 3-1/2" - 1 measure 3.500" wide by .750" thickness, enabling the detail to be machined out of four-quarter lumber. The semicircular reeded profile is comprised of a 2-39/64" wide horizontal line segment with a 1/4" round-over inside edge on the top, attached to two 1/4" radius semicircular arcs, connected to a 9/64" wide horizontal line leaving a 7/16" thickness dimension on the right side of the pattern. We also have a matching chair rail/casing moulding for your review and consideration, chair rail 2.250" - 23, the pattern will elegantly complement this profile as well as the rest of the room.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.305
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$264.00
$264.00
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$281.00
$281.00
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$306.50
$306.50
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
