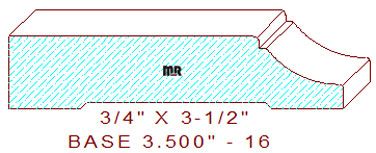

This base/ case moulding measures 3-1/2" wide by 3/4" thickness, the profile portion measures 7/8" wide, it is composed of a 1/8" wide stepped fillet on top, this portion transitions into a cavetto leaving 1/4" thickness remaining at the thinner side. This detail may also be considered for use as a casing, position a backband on the thicker side and create a unique, one of a kind, stunning design for your home, all our backband profiles are located under Caps category of our catalog.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
