Base / Case Moulding 3-1/2" - 17

Base / Case Moulding 3-1/2" - 17

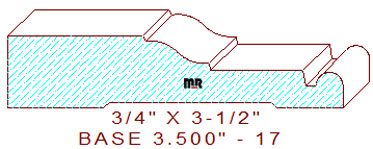

This striking base/case moulding 3-1/2" - 17 measures 3.500" wide by .750" thickness. The colonial profile is comprised of a 1-13/32" wide straight line, connected to a two tangent radius cyma reversa flanked by small vertical lines, attached to a 1" wide horizontal line with a 5/32" vertical step, joined to a 5/32" wide sunk fillet with a 9/32" wide half round bead at the top of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

If your utilizing this molding as a casing, try utilizing one of our many different fancy backband profiles on the side edge of this pattern, create a stylish and unique casing design for your beautiful home or office, simply alter the search parameters to find the width backband that best fits your architectural style. >Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .641" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
