Baseboard 3-1/2" - 30
Baseboard 3-1/2" - 30

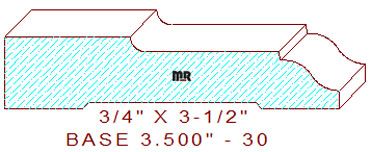

This baseboard/casing 3-1/2" - 30 measures 3.500" wide by .750" thickness. The profile is comprised of a 1-5/16" wide flat fillet that transitions into a 1-9/16" wide congee with an attached stepped fillet and cyma reversa positioned on the thin side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
