Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Baseboard 3-1/2" - 35

Baseboard 3-1/2" - 35

Baseboard 3-1/2" - 35

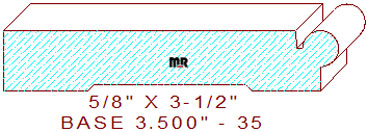

This pencil bead baseboard 3-1/2" - 35 measures 3.500" width by .625" thickness permitting the use of four-quarter lumber for milling on an industrial-grade molder. The decorative profile is also utilized as a crown molding backer. The pattern contains a 3-1/16" full-line segment on the top center, joined to a 1/16" wide by 3/16" deep sunk fillet and a 23/64" broad three-quarter circle with a 1/4" tall vertical line on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.187
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 0.144
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
Not Needed
$255.50
$255.50
Total:
$641.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
Not Needed
$272.50
$272.50
Total:
$682.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
Not Needed
$289.50
$289.50
Total:
$723.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
