Baseboard 3-9/16" - 1
Baseboard 3-9/16" - 1

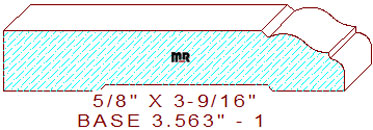

This unpretentious baseboard 3-9/16" - 1 measures 3.562" wide by .625" thickness, authorizing the pattern to be machined from four-quarter lumber. The modest profile is composed of a 2-11/16" wide flat line with a forty-five-degree elevation changing the angle on the top center, joined to a short two tangent radius ogee with a 1/16" vertical step that merges with an 11/64" quarter round arc on the right side of the design. Explore our backout category for an appropriate relief cut for the bottom of this detail; we’re confident you will find a suitable design to match your needs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.563
Depth of Cut: 0.563
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.28
$267.28
Total:
$534.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$284.53
$284.53
Total:
$569.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.41
$310.41
Total:
$620.81
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
