Base Moulding 3-9/16" - 2

Base Moulding 3-9/16" - 2

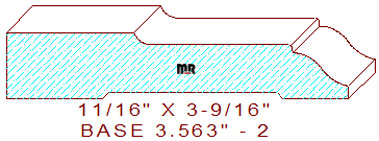

This good looking baseboard moulding 3-9/16" - 2 measures 3.562" wide by .687" thickness, allowing the pattern to be milled out of four quarter lumber. The lovely profile is comprised of a 1-21/64" wide flat line segment on the top left, connected to a 1-21/32" wide congee derived from a 3/16" radius cove with a 3/32" drop in elevation in the center, merged with a 3/8" convex arc tangent off of a 1/2" concave semicircle creating the ogee, leaving a 1/8" thickness dimension on the right side of the design.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process the knives will be capable of milling some of the finest quality architectural mouldings you have ever produced.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.563" / Depth of Cut = .569" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
