Baseboard 3-9/16" - 3
Baseboard 3-9/16" - 3

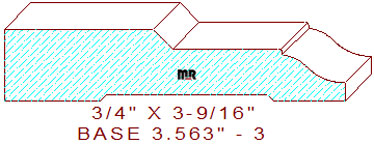

This appealing baseboard 3-9/16" - 3 measures 3.562" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The beautiful profile is composed of a 1-9/16" broad flat line on the top left, joined to a forty-five-degree chamfer that descends the elevation 13/64", merged with a 1-5/32" broad line segment and a 1/16" vertical step in the center, attached to a 7/16" convex arc tangent to a 1/2" concave semicircle creating the ogee, leaving a 3/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.562
Depth of Cut: 0.562
Bottom Cutter Head
Width: 3.563
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$267.22
$267.28
Total:
$534.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$284.47
$284.53
Total:
$569.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$310.34
$310.41
Total:
$620.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
