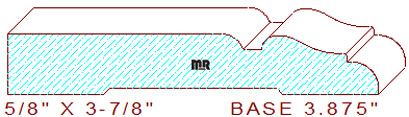

This Stylish Base Moulding 3-7/8" measures 3.875" wide by .625" thickness, with a .625" depth of cut on the top horizontal set of knives. Caution; the moulding knives will come within .020" of the moulder bed plates when milling this detail, we suggest a sacrificial bed plate be used for these types of milling operations. Search our backout category for an appropriate relief cut for this detail, we have a few options available for you to choose from. You may want to change the backout search parameters by a quarter of an inch or so to find a suitable size cutter to mill the bottom of this pattern.
The creative profile is comprised of a 2-7/16" wide straight line attached to a 15/64" radius quarter circle, connected to a 13/64" wide sunk fillet that transitions into a cyma reversa, joined to a small vertical fillet with a 1/4" radius quarter round circle positioned on the top of the pattern.
Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, with a twenty-five degree back clearance angle, will rough grind a set of high-speed steel moulding knives in a very minimal amount of time.
