Baseboard 3-15/16"
Baseboard 3-15/16"

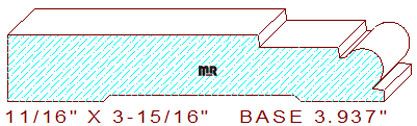

This pencil bead baseboard 3-15/16" measures 3.937" wide by .687" thickness. The pattern comprises a 2-5/8" wide by 1/8" stepped fillet connected to a 27/32" wide fillet with a 7/32" radius 3/4 round bead at the top. The matching casing for this detail is door casing 2.375" - 7.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.687
Depth of Cut: 0.223
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.937
Depth of Cut: 99.999
Bottom Cutter Head
Width: 3.937
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$135.00
Not Needed
$325.22
$287.72
Total:
$747.94
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.00
Not Needed
$343.97
$306.47
Total:
$792.44
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$152.50
Not Needed
$372.09
$334.59
Total:
$859.18
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
