Base Moulding 4"

Base Moulding 4"

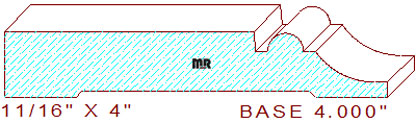

This fashionable base moulding 4" measures 4.000" wide by .687" thickness. The profile is comprised of a 2-5/8" wide by 13/64" deep step lines, attached to a 3/8" wide half round circle flanked by two 1/8" wide sunk fillets with a 3/4" radius cove, leaving a 5/32" thickness dimension at the top of the design. Browse our backout category for a suitable relief cut for this pattern, we have a few options to select from.

Try one of our fancy base shoe .750" - 6, or, plant on / applied moulding .375" - 15 on the bottom of the baseboard, find another irresistibly compelling pattern by simply changing the width search parameters. Let us assist you in shaping your home’s astonishing architectural decor, one attractive profile at a time.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 4.000" / Depth of Cut = .531" (top knives) & .062" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
