Base Moulding 4" - 103

Base Moulding 4" - 103

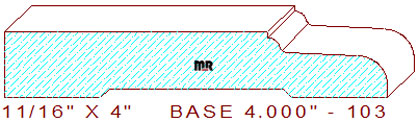

This beautiful base moulding 4" - 103 measures 4.000" wide by .687" thickness. The custom profile is comprised of a 2-3/4" wide horizontal line with a 1/16" vertical step, connected to a small ogee consisting of a 1/8" radius arc tangent off of a 3/32" cove, joined to a slightly tapered line with a 5/16" radius edge at the top of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find one to suit your needs.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .664" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
