Base Moulding 4" - 105

Base Moulding 4" - 105

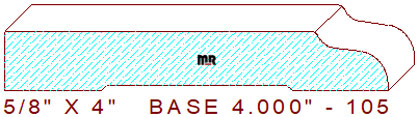

This cyma recta baseboard moulding 4" - 105 measures 4.000" wide by .625" thickness. The modern profile is comprised of a 3-1/4" wide straight flat line with a 3/32" radius edge, connected to a 15/64" cove and a 9/32" radius arc that are joined to one another by a tangent angled line. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find a functional design to suit your needs.

Learn how to become more efficient while searching over 15,000 mouldings in our state of the art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project, we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .625" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
