Base Moulding 4" - 18

Base Moulding 4" - 18

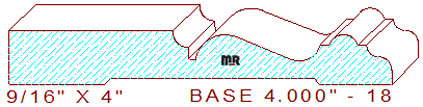

This colonial base moulding 4" - 18 measures 4.000" wide by .562" thickness. The acrylic template is designed for a 5" wide profile which consists of a 2-7/32" straight line, attached to a 5/32" cove with a 1/8" vertical step and 5/64" wide sunk fillet that transitions into a two tangent radius cyma reversa, connected to a half round bead flanked by small horizontal lines with a small ogee at the top of the design. Browse our backout category for a suitable relief cut for this detail, we’re confident you will find one to suit your needs.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .531" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
