Stepped Base Moulding 4" - 31

Stepped Base Moulding 4" - 31

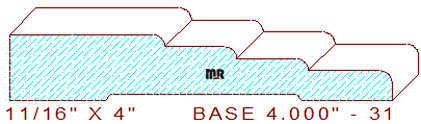

This Stepped Base Moulding 4" - 31 measures 4.000" wide by .687" thickness with a .625" depth of cut on the top horizontal moulding knives. Browse our backout category for an appropriate relief cut for this pattern, we have a few options for you to select from.

The southwest style tiered profile is comprised of a 1-5/8" wide by 1/8" deep stepped fillet with a 1/8" radius edge, connected to two 3/4" wide by 1/8" deep stepped elevation changes with 1/8" radiuses used in transition, the upper portion measures 7/8" wide with a 1/8" radius eased edge, leaving a 5/16" thickness dimension at the top of the design.

Please read our commentary, Moulder Pressure Shoe – Custom Made, this helpful step by step article will help you mill this profile to perfection. Whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
