Base Moulding 4" - 39

Base Moulding 4" - 39

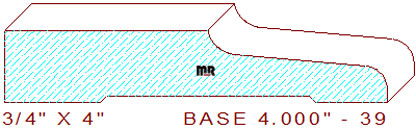

This modern baseboard moulding 4" - 39 measures 4.000" wide by .750" thickness, allowing the detail to be milled out of four quarter lumber. The contemporary profile is composed of a 2-1/8" wide line segment on the top left, attached 5/16" cove tangent to an elevation changing five degree angled line that connects to a 1/4" rounded edge on the right side of the pattern. Browse our backout category for an appropriate relief cut for the bottom of this detail, we’re confident you will find a functional design to match your needs.

Mirror Reflections has over thirty-six years’ experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .750" (top knives) & .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
