Base Moulding 4" - 43

Base Moulding 4" - 43

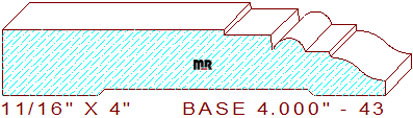

This highly decorative baseboard moulding 4" - 43 measures 4.000" wide by .687" thickness, allowing the pattern to be machined out of four quarter lumber. The stylish designer profile is composed of a 2-5/16" wide flat line with a 1/16" vertical step on the top left, connected to a 1/2" wide line with a 5/32" vertical drop in elevation in the center, attached to a embellishing 11/32" wide half circle and a 1/4" wide by 1/16" deep perpendicular step, joined to a two tangent radius ogee leaving a 5/32" thickness dimension on the right side of the design.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years’ experience in woodworking, and a former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .531" (top knives) & .062" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
