Base Moulding 4" - 45

Base Moulding 4" - 45

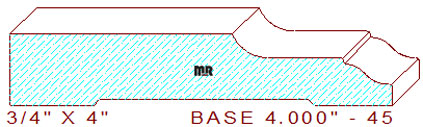

This Congee Style Base Moulding 4" - 45 measures 4.000" wide by .750" thickness, the beautiful profile is comprised of a 2-15/64" straight flat line attached to a 13/32" radius stepped cong'e with a two-tangent radius creating a cyma reversa/ogee located at the top of the detail. Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steels or carbide and shipped within twenty-four hours.

Profile Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
