Base Moulding 4" - 46

Base Moulding 4" - 46

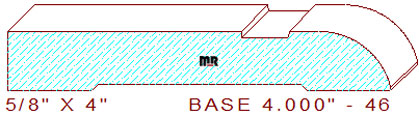

This custom contemporary base moulding 4" - 46 measures 4.000" wide by .625" thickness. The modern design is comprised of a 2-7/16" wide straight line, connected to a 1/2" wide by 1/16" deep dado, you may want to consider installing a piece of 1/2" rope molding in this area, the top section is 1-1/16" wide with a elevation changing 25/32" radius arc at the top of the design. The template is designed to mill up to 6.375" wide enabling size changes within that range. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We invite you to search for other design ideas for your elegant home or office, we have over 15,000 alternative molding options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

Caution; the cutters will come within .020" of the moulder bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these types of milling operations. For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
