Baseboard 4" - 64

Baseboard 4" - 64

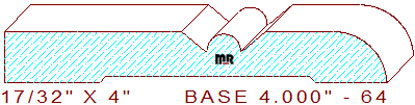

This single bead baseboard 4" - 64 measures 4.000" wide by .531" thickness, allowing the pattern to be machined out of four-quarter lumber. The lovely profile composes a 1-55/64" broad flat line on the top left, connected to a 7/8" wide v-shaped channel with a recessed (.025") 3/8" wide half circle in the center, attached to 1-17/64" broad line with a 9/16" radius edge on the right side of the design. We offer a beautiful matching plinth block 6.000" - 3 for your review and consideration.
Caution; the cutters will come within .020" of the machine bed plates when milling this detail. We recommend a wooden, phenolic or plastic sacrificial bed plate be used for these tilling operations.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.531
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$290.00
$290.00
Total:
$580.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$309.00
$309.00
Total:
$618.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$337.50
$337.50
Total:
$675.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
