Baseboard 4" - 86
Baseboard 4" - 86

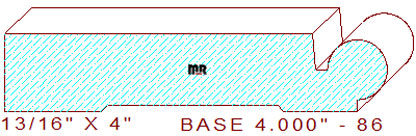

This pencil bead baseboard 4" - 86 measures 4.000" width by .812" thickness, allowing the use of four-quarter lumber for milling on a commercial-grade molder. The distinguished universal pattern doubles as a crown backer. The beautiful profile contains a 3-1/4" broad flat line on the top center. Joined to a 1/8" wide by 3/8" deep sunk fillet merged with a 5/16" radius three-quarter round pencil bead, leaving a 1/8" vertical line segment on the bottom right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.812
Depth of Cut: 0.375
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
Not Needed
$290.00
$290.00
Total:
$714.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
Not Needed
$309.00
$309.00
Total:
$759.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
Not Needed
$337.50
$337.50
Total:
$826.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
