Baseboard 4-1/8" - 2
Baseboard 4-1/8" - 2

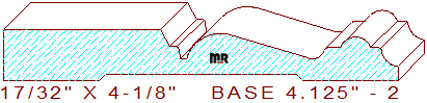

This colonial baseboard 4-1/8" - 2 measures 4.125" wide by .531" thickness, allowing the detail to be machined from four quarter lumber. The old world profile contains a 1-41/64" broad line segment on the left, attached to a sixty-degree beveled line that joins to a 3/32" wide step joined to a 5/64" wide by 9/64" deeply sunk fillet in the center. Attached to an elongated french curve that merges with a 5/16" wide half round bead flanked by small horizontal fillets with a 13/64" cove on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.125
Depth of Cut: 0.388
Bottom Cutter Head
Width: 4.125
Depth of Cut: 0.063
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$296.50
$296.50
Total:
$593.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$316.00
$316.00
Total:
$632.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$345.25
$345.25
Total:
$690.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
