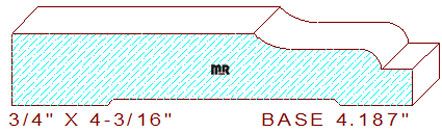

This Base Moulding 4-3/16" measures 4.187" wide by .750" thickness, the profile portion dimension is 1.660" wide and comprised of a cong'e that reverses on itself and transitions into a .321" wide fillet at the top. This pattern has many possibilities for use, one might simply at one of our base caps or panel moulds at the top of the detail or shorten the width and place a radius edge on the side for a casing or maybe leave a straight edge and utilize one of our many backband profiles located under the "Caps" category.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
