Baseboard 4-3/16" - 2

Baseboard 4-3/16" - 2

Baseboard 4-3/16" - 2

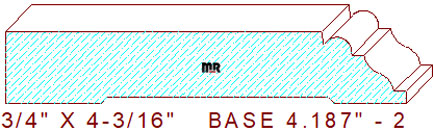

This decorative baseboard 4-3/16" - 2 measures 4.187" width by .750" thickness, allowing the use of four-quarter lumber for milling on a commercial-grade molder. The lovely profile is also utilized as a crown backer, the detail contains a 3-5/16" full-line segment with a 3/16" vertical inside step on the top center. Attached to a 5/16" half circle with a 1/8" flat line that joins a two tangent radius ogee and another 1/8" broad line, leaving a 1/8" thickness dimension on the right side of the design.

Whether you have a Weinig R960 profile grinder or a CNC Technology template-making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect their imagination's attractive elegance and architectural style. Be creative by mixing and matching a few of our beautiful designs in your home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.187" / Depth of Cut = .625" (top knives) & .063" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
