Base Moulding 4-1/4"

Base Moulding 4-1/4"

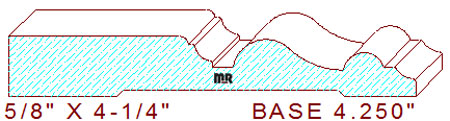

This colonial base moulding 4-1/4" measures 4.250" wide by .625" thickness. The stylish profile is comprised of a 1-7/8" wide horizontal line with a radius edge, connected to a cavetto flanked by a vertical and horizontal fillet, attached to a 7/32" wide sunk fillet that transitions into a cyma reversa, joined to a 27/64" wide half round circle, small fillet and a 15/64" radius cove at the top of the pattern. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

This professionally drafted cad dxf file contains two high precision moulding template designs to create cutters for this old-world baseboard detail, one for cutting the entire profile and the other for milling just the profile portion of the pattern. From just an idea in your mind, to reality in your home, our moulding profiles reflect the beauty and style of your imagination, let us help design your custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .440" (top knives) & .063" (bottom cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
